Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: HuaXiao
  • Model Number: VWG2008V2
  • Application: Wind Controller
  • Rated Voltage: 24V
  • Maximum Current: 40A
  • Applicable voltage: 12V 24V auto
  • Wind power: 500W
  • Solar power: 100W
  • Max Charge current: 40A/20A(adjustable)
  • Wind turbine brake voltage: 17.5V/32.5V(adjustable)
  • Size: 228*133*75mm
  • Weight: 1.2kg
  • Display: LCD+LED
  • Warranty: 3 Years
  • Certification: CE

Packaging & Delivery

Packaging Details: standerd packing for export
Delivery Detail: Shipped in 2 days after payment
Welcome HUAXIAO Family!

Product Description

wind solar hybrid charge controller main features:

1. LCD display with input keys to allow user to alter values

2. The unit will store information such as

    Total amps generated

    Total Kw hours generated

    Amps used by load

    And many more

3. Connection of both solar and wind

4. Auto sensing of voltage of batteries connected(12Vor 24V)

5.Ensures the battery is maintained in best possible condition by preventing overcharging and over discharging.

6. Automatic braking of the turbine when battery fully charged and/or no load connected

7.Automatic braking of the turbine when charge current is too high i.e. in very high winds

8.Manual brake switch

9.A “Load” output where external devices can be switched on and off at user determined voltages.

10.The “load” output is also current limited to protect the connected device

11.Brake time is programmable



  wind solar hybrid charge controller description:

MODEL

VWG2008

Rated Power

600W (Best ration: wind turbine500W, PV cells100W)

Applicable batteries

12/24V,100-300Ah(auto detect battery voltage)

Wind turbine automatically braking voltage

17.5V/32.5V (DC voltage after rectification)

Battery over charge voltage

14.32V/28.64V(default, adjustable)

Battery low voltage disconnect load

10.98V/21.97V(default, adjustable)

Load on voltage

12.44V/28.88V(default, adjustable)

Charge current max

40A/20A

Load current max

35.61A/17.80A

Brake time

50 Seconds(default, adjustable)

No load loss

Less than 40mA

Dimensions

228×133×75mm

Weight

1.2kg

Working environment

Environment temperature -10°C~+50°C,Relative humidity 0~90%



Pictures

 wind solar hybrid charge controller Pictures:

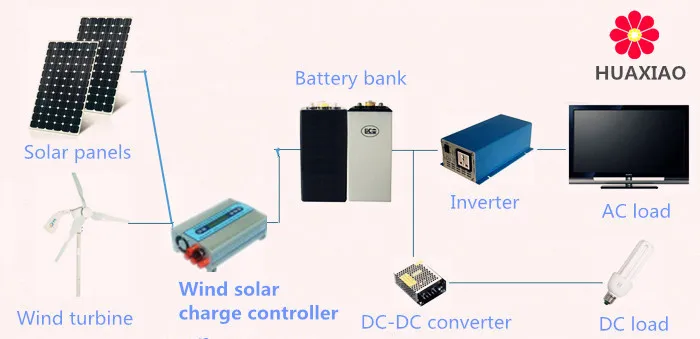

Application





Why choose me

HUAXIAO technology Co. Ltd., is a high-tech company which specialized in Wind and Solar charge controller, inverter, wind turbine generator and related products.

All of our products comply with CE certification; we have exported our products to Europe, North America, Japan, and many other countries. And the products are welcomed by our customers for their stability, long life duration.

 "High Quality, Competitive Price, Excellent Service"  Please do not hesitate to contact us to get detail information of our product and company.

We will always do our best for you. www.huaxiaotech.com





-We give 3 years warranty and the whole life maintenance service for it.
-We reply your inquiry in 24 hours working time
-Customized design is available, OEM/ODM are welcome
-We choose the best freight forwardar for our customer
-Offer customer the best price and high quality wind solar hybrid controller



Dear friend,thanks for your interest and waiting for your inquiry!
